4 CHANNEL CLASS D POWER AMPLIFIER
EFFICIENCY IS THE RULE OF THE GAME
Discover the power of our new "OMICRON" Amplifier Line, which maintains a massive current flow, utilizing up to 80% of the energy. Other amplifiers don't offer this advantage, converting only 50% of the energy and dissipating the rest as heat.
PERFORMANCE
OMICRON amplifiers are specially designed for superior subwoofer performance, with a stable 2 ohm signal. You can connect one 4 ohm single voice coil subwoofer in bridge mode and two or four speakers to the front channels, as you have a speaker filter on the front channel and a speaker and subwoofer filter on the rear channels. The configuration options are numerous and varied.
4 x 4 ohm speakers / 8 x 4 ohm speakers
2 x 4 ohm speakers + 1 x 4 ohm subwoofer
4 x 4 ohm speakers + 1 x 4 ohm subwoofer
2 x 4 ohm speakers + 2 x 2 ohm subwoofers
INCREASES PUNCH FREQUENCY
Not all amplifiers give you the option to boost your bass at a frequency that creates better performance in your car. Through (Hyper Bass) (you can increase by 12-6-0 Decibels at the 45Hz frequency to increase the powerful, deep bass you like the most)
COMPACT AND MODERN DESIGN
It features a design focused on maximizing space without sacrificing elegance and, above all, power. It boasts a brushed aluminum finish and fine details in gray and blue, creating an elegant and minimalist atmosphere.
Specs

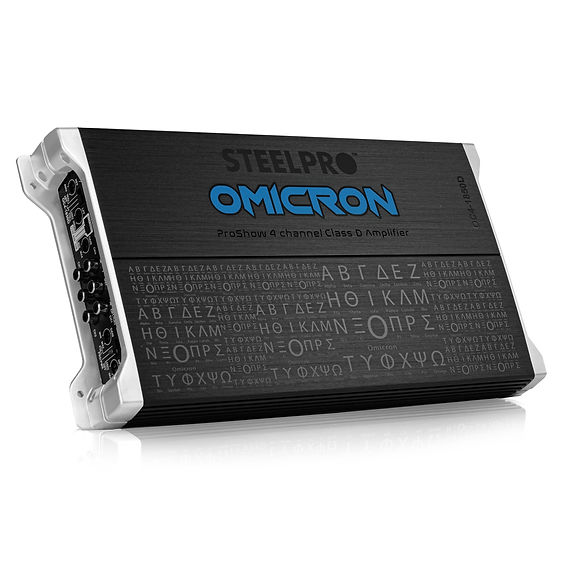

4-Channel Open Show Class D Power Amplifier OMICRON By STEELPRO
RMS POWER at 2 Ohms: 125Wx4
RMS POWER at 4 Ohms: 75Wx4
Bridge POWER at 4 Ohms: 250W x 2
16V Peak: 250W x 4
BRIDGE 16V Peak: 520W x 2
Minimum impedance: 2 Ohm
THD: <0.05%
Input impedance: 22kOhm
Input sensitivity: 300mV-6V
Signal-to-noise ratio: > 90dB
Low pass: 50Hz-200Hz
High-pass: 40Hz-3KHz
Hyper Bass: 0-6-12 dB
Nominal fuse rating: 20Ax2
Operating voltage: 9V ~16V
