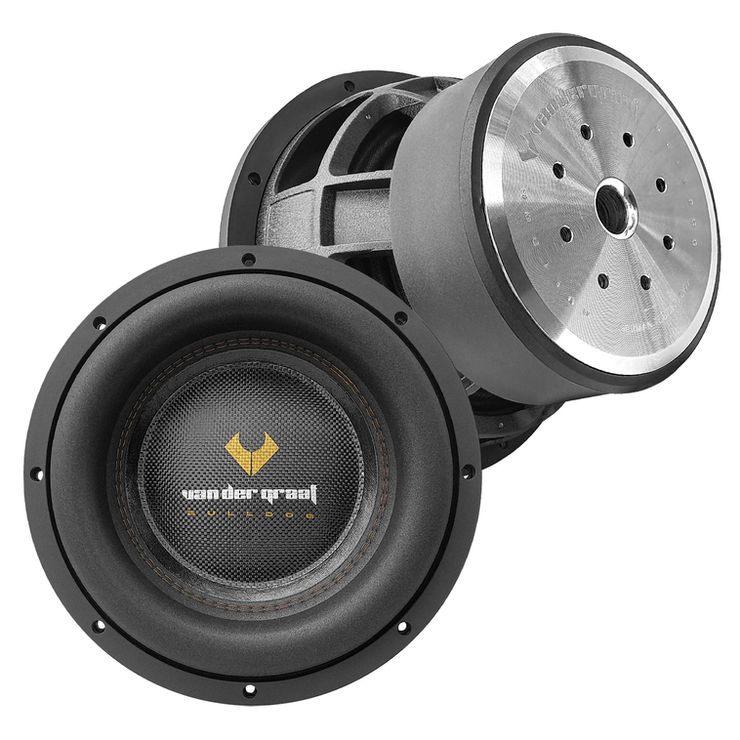

Bulldog

Nominal Diameter: 319 mm (12'')
Nominal Impedance: 4 + 4 Ohms
Frequency Range: 20 - 200Hz
RMS Power: 2000 Watts
Maximum Power: 4500 Watts
Sensitivity: 1 W / 1 m 87.1dB
Moving Coil Diameter: 76.5 mm
Moving Coil Length: 50 mm
Air Gap Height: 12 mm
Resonance Frequency: 31Hz
DC Moving Coil Resistance, RE: 3.6 + 3.6 Ohms
Mechanical Quality Factor, QMS: 31
Electrical Quality Factor, QES: 0.41
Total Quality Factor: 0.36
Air Volume Equivalent to CMS VAS: 45.913 L
Mechanical Compatibility, CMS: 150.33 M/N
BL Factor: 12.23 TM
Effective Surface Area, SD: 463.77 cm²
Linear Excursion, XMAX: 20 mm
